Indentations – Gear Failures

Indentation damage refers to the plastic (i.e. permanent) deformation of discrete areas of active gear tooth surfaces.

Also referred to as:
Debris Dents, Debris Indentations

Overview of gear indentations

Indentation damage refers to the plastic (i.e. permanent) deformation of discrete areas of active gear tooth surfaces. It results when metallic debris in the oil film is trapped between, and rolled over by, contacting gear surfaces. High contact stress concentration then causes the debris particle to indent the gear surface. Indentations have a unique appearance and are easily identified. Indentations are distinct from three-body abrasive wear as they result from the over-rolling of debris, rather than sliding contact. They can be a signal of poor oil cleanliness, or an indication of damage elsewhere in the gearbox. As such, they are an important clue for assessing overall gearbox health. Indentations may or may not be progressive. However, they generally create stress concentrations which promote the formation of contact fatigue damage around them, such as micropitting and macropitting.

Causes of gear indentations

Indentations are formed when debris in the lubricant, trapped between a bearing roller and raceway, is rolled over. This produces extremely high localised contact stresses which can cause the debris particle to permanently deform and dent the roller or raceway. The debris which produces these indentations can come from a variety of sources:

Poor cleanliness during gearbox manufacture or assembly can leave behind debris particles which will damage the bearing during operation.
Damage from handling and transportation.
Poor cleanliness standards during up-tower maintenance or inspection can lead to debris particles being introduced into the gearbox.
Most commonly, indentations are secondary damage due to component failure elsewhere in the gearbox generating debris – such as bearing macropitting. The debris is then transported through the gearbox by the lubricant.

Appearance of gear indentations

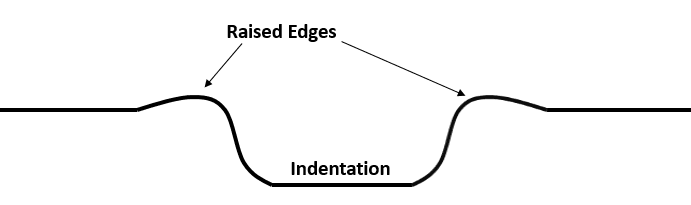

Indentations produce a cavity or pit of varying size and depth, usually with rounded corners on the sides of the pit (compared to the sharp edges of macropitting). As a result of the deformation of material, the edges of the pit are raised above the normal profile of the contact surface, as illustrated in below:

These raised edges act as a ring of increased stress which will be quickly polished, producing a distinctive “halo” around the indentation pit.

The exact appearance of an indentation will vary based on the properties and size of the material that was originally trapped between the loaded contact surfaces. Ductile materials will deform significantly, creating an indentation with soft, gradual edges. Brittle materials with high hardness will produced indentations with sharper edges due to the lack of compliance under load. The bottom of the pit will be relatively flat, which distinguishes it from the rough bottom characteristic of macropitting.

How gear indentations progress

Provided there is no known source of debris generation, a single or small number of randomly dispersed indentations may not be cause for concern. A large amount of indentations on gear teeth would signify damage elsewhere and be cause for concern. It is possible that indentations will not progress. However, the high stress concentrations around the edges of an indentation promote the initiation of contact fatigue damage. This often means micropitting or point surface origin macropitting develops around the indentations. These types of damage are progressive failure modes which can lead to functional failure of the gears. Furthermore, brittle materials may fracture as they indent the gear surface, producing smaller particles which additionally cause three-body abrasive wear.

Early detection across your fleet can help save you time and money

Discover predictive maintenance technologies

Detectability of gear indentations

Method

Detection Efficiency

Notes

Borescope inspection

Easy

Indentations are readily observable and distinguishable with a borescope.

Vibration analysis

Easy

Indentations large enough to be of concern will cause a repeating impulse which can be easily detected using vibration analysis.

Visual inspection

Medium

The naked eye can detect most indentation marks on gears easily, provided the inspection opening provides a line of sight. Otherwise a borescope is required

Oil debris sensor

Medium

Indentations result from large pieces of debris within the lubricant, which would likely be detected by an oil debris sensor.

Oil sample analysis

Medium

As indentations are directly linked to the cleanliness of the lubricant, an oil sample analysis would likely identify the presence of debris particles.

SCADA data

Not applicable

SCADA data does not aid detection of indentations.

Discussion on gear indentations

Indentations are distinct from three-body abrasive wear as they result from the over-rolling of debris, rather than debris scratching the gear during sliding contact. As gears are primarily in sliding, rather than rolling contact, indentations are more common in bearings.

To mitigate against the occurrence of indentations, the following steps should be taken:

Use oil filtration to ensure suitable oil cleanliness where large debris particles are removed from circulation.
Maintain strict cleanliness standards while performing gearbox maintenance or inspections that require opening a gearbox cover.
Maintain strict cleanliness standards during the gearbox manufacture and assembly.

Need some help? Contact us to speak to one of our experts

Severity rating

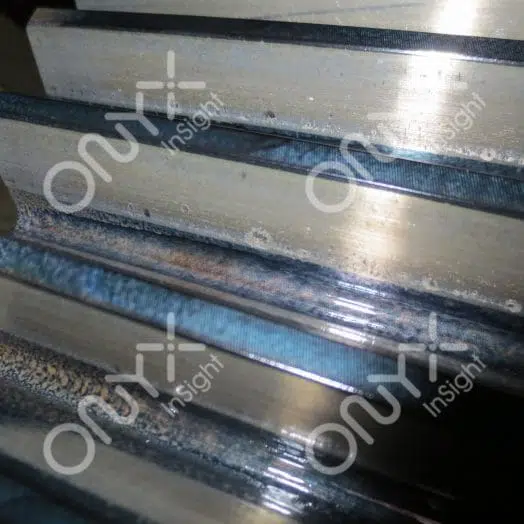

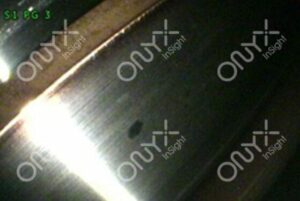

Rank 1 Single or small number of isolated indentations, smaller than 1mm in diameter. No known debris source. May exhibit halo appearance around the edges of the indentations.

Detection:

Visual, borescope, vibration

Recommended action:

None – run turbine as normal.

Rank 2 Multiple indentations in a localised area. Indentations larger than 1mm in diameter. Halo appearance around the edges of the indentations. Perhaps some emergence of localised micropitting.

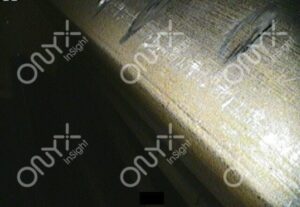

Indentations – gear failure severity rating 2

Detection:

Visual, borescope, vibration, oil debris, oil analysis

Recommended action:

Run turbine, increase inspection frequency and carefully monitor vibration and oil for damage progression.

Rank 3 Indentation marks covering a significant area of the gear tooth. Emergence of micropitting around the indentations. Likely secondary damage from a separate failing component.

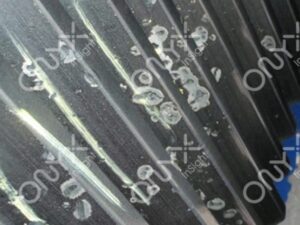

Indentations – gear failure severity rating 3

Detection:

Visual, borescope, vibration, oil debris, oil analysis

Recommended action:

Identify source of indenting debris. Depending on condition, consider stopping turbine. Schedule for replacement to avoid consequential damage.

Rank 4 Progresses to other failure modes

Detection:

N/A

Recommended action:

N/A
