Grinding Burn – Gear Failure

Case-carburized gears are mildly distorted during heat treatment and require aggressive grinding to achieve final part tolerance. This article will discuss grinding burn detection methods, appearance, and failure mode causes.

Also referred to as:
Grind Temper, Grinding Error, Grinding Abuse

An overview of grinding burn

Case-carburized gears are mildly distorted during heat treatment and require aggressive grinding to achieve final part tolerance, during this process abrasive grains on the grinding wheel can become blunted due to mechanical and thermal stress, as well as physicochemical wear.

Grinding burn, also referred to as grind temper, describes any surface layer damage resulting from grinding. Error in the grinding process can cause localised tempering or re-hardening of the gear tooth surface. This results in detrimental residual surface stresses which rapidly lead to cracking.

Such cracking may occur immediately after manufacture, or once the gearbox is in service. Regardless, these cracks can proceed rapidly to severe failures like macropitting and fracture.

Nital etching can greatly improve detection and should be performed as part of the manufacturing process. As a manufacturing error, grinding burn may be a serial defect affecting multiple assets. It is cause for serious concern.

What causes grinding burns?

Case-carburised gears are ground following heat treatment. Grinding burn is caused by errors in this process, some examples of which are:

Using improper or fouled grinding wheels
Improper grinding wheel speed or direction
Insufficient coolant flow
Incorrect positioning of gear or grinding equipment
Pre-existing defects on the gear

Such errors can result in thermal loads so high as to thermally induce material alteration at localized points. There are two forms of such material alteration:

Tempering – when a localised area is overheated by grinding to the point tempering occurs. The area becomes softer than the surrounding material.
Re-hardening – in more extreme cases a localised area may be heated beyond the austenising temperature. Surrounded by comparatively cold steel, it is quenched, but not tempered. It results in a re-hardened zone surrounded by a softer, tempered zone.

In both cases, residual stress on the gear tooth surface results in drastically reduced mechanical suitability. This damage is known as grinding burn and leaves the tooth surface predisposed to cracking.

Grinding burn is caused by localised overheating while grinding case-carburised gears.

Issues with grinding burn? Our engineering team can help guide you.

Discover Wind Turbine Engineering Services

Appearance of grinding burns

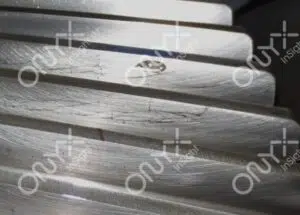

Residual stress from grinding burn will lead to the development of a network of cracks on the gear tooth surface. The cracking mechanism is similar to surface-initiated macropitting, but distinguishable.
