Guide to managing wind turbine blade root insert failures.

Bill slater in the field
Bill Slatter
Director of Blade Products
ONYX Insight
Blade liberation square

Table of contents

An introduction to blade root failures

The wind energy sector is grappling with a surging challenge: blade gap failures — once considered rare — are now a tangible threat to operational efficiency. Recent incidents, like the blade “liberations” (or detachments) at wind farms in Biglow Canyon (Oregon), Findlay Whirlpool (Ohio), and Lundgren (Iowa), starkly illustrate this troubling trend.

A single incident of blade liberation carries significant reputational risk, severely damaging the trust between wind projects and local communities, beyond the serious safety implications.

In the last decade, wind turbine blades have generally been configured with one of two different types of bolted joint architectures to connect the turbine blade to the pitch bearing.

Of these two types, the root insert style derives its name from having an embedded metallic bushing in the blade composite with internal threads to engage the bolt stud. This bolted joint configuration is popular with modern designs because it allows a higher bolt count and smaller root diameters on blades, namely due to lower overall system cost.

Despite the higher bolt count, the root insert architecture is not immune to failures. In recent years, blade losses have occurred due to the failure of this jointed connection and in some cases have led to the collapse of the entire wind turbine.

Modern wind turbines have not only grown to enormous scales but have also evolved to stay cost-competitive; a consequence of this mixture is the higher imbalance loads created when large blades are detached from the rotor in an instant, high enough to buckle towers. A growing sense of urgency for solutions among owners and operators has spurred root cause investigations in OEMs, recommendations for inspections, and monitoring solutions to provide effective containment and advanced warning of progressive failures.

The true cost of a blade root failure

  • Failure rate: Up to 20%
  • Replacement costs: $500-800k (if left undetected)
  • Ineffective unless performed very reguarly due to variable progression rate

During the operation of the wind turbine, there is a power-producing state often referred to in design as maximum thrust. At this point in operation, the blades collectively create enough thrust loading to rival and even surpass modern jet engines for commercial airlines. The blades also have enough mass, and their centers of gravity are far enough away from the hub center, and spin at a rate that produces centrifugal forces high enough to match the maximum thrust forces of the wind turbine.

When a blade is thrown (or most of it) aerodynamic thrust immediately is reduced and the tower accelerates forward. Simultaneously, the imbalance created on the rotor causes the tower to bend laterally as the remaining two blades continue to spin around until settling. These combined forces have grown as rotors have grown and tower designs have consequently become more susceptible to buckling in these extreme conditions. This is the worst possible scenario but in some cases, it has been a reality for owner-operators.

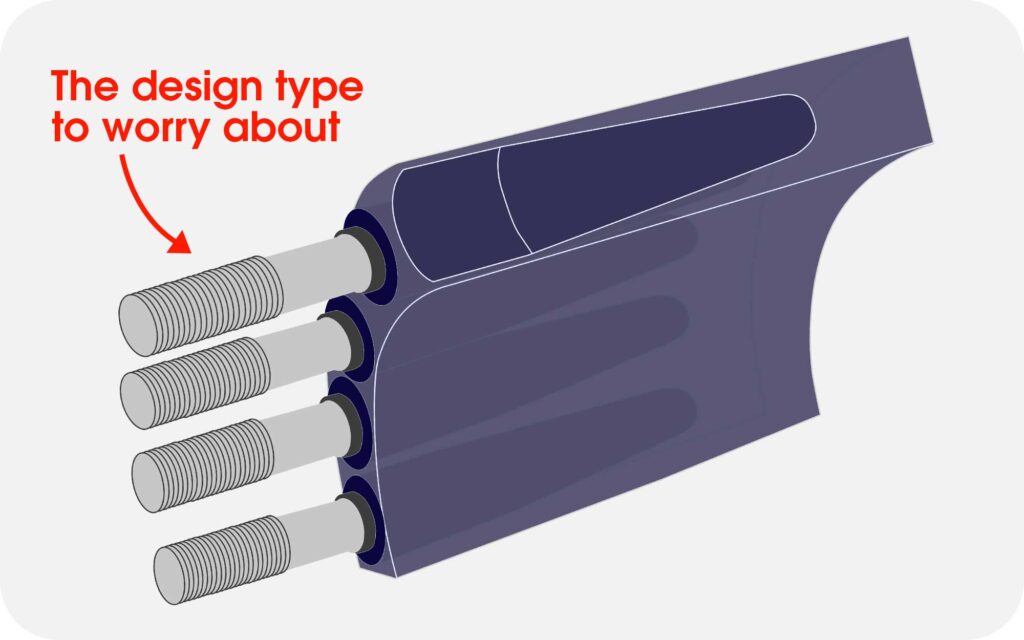

Blade root insert design
Blade root insert design

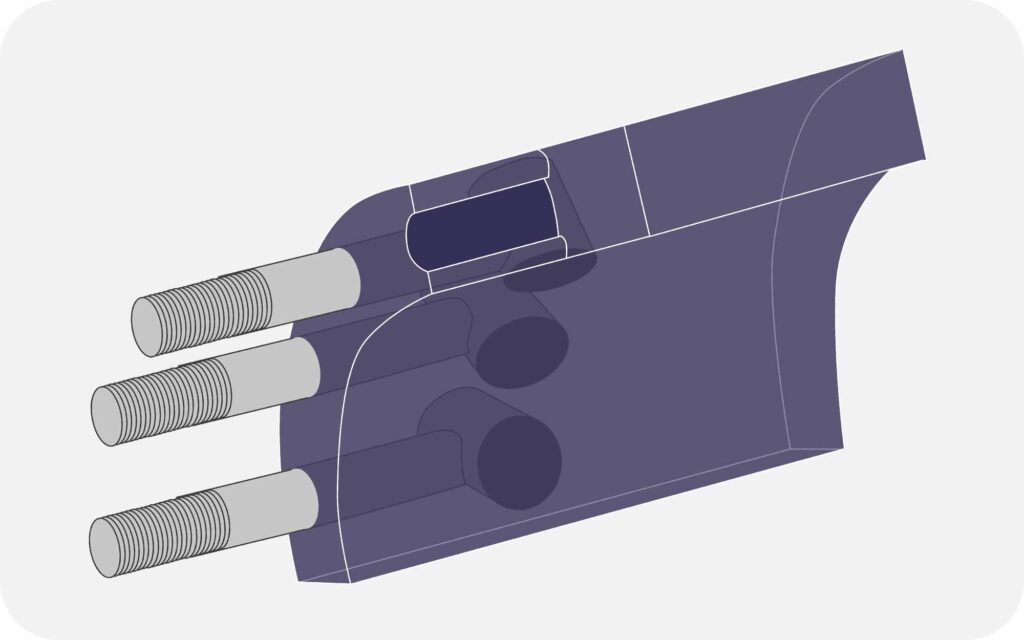

T-Bolt Blade Root
T-Bolt Blade Root

Diagnosing the causes of blade root failures

Should a Root Cause Analysis (RCA) conclude a turbine collapse is due to a blade root insert failure, the next logical step is to diagnose the cause of the blade root failure.

Let’s examine the available evidence of a blade root failure:

  1. The damage is progressive and continues to worsen.
  2. The damage is often found biased predominately near the leading and trailing edge of the blade.
  3. Rust and metallic debris are often found in the blade near the interface to the bearing.
  4. Root insert bushings appear often completely loose in damaged zones.

These observations point to a few focus points to continue an RCA: since the damage is progressive and predominately located near the leading / trailing edge, fatigue loading may play a central role.

Based on the appearance of rust, water ingress and therefore joint gapping may be occurring. The interface of the bushing to the composite having a smooth surface is also indicative of poor bonding strength or adhesion of the resin-metal interface and possibly contamination of the bonding surface in manufacturing.

The presence of cracks in the laminate near the termination of the metal bushing may indicate stresses being too high and thereby either a design or loads estimation error. My experience in design and RCAs of failures of wind blades reinforces conclusions derived long ago – it’s never just one cause but most likely the combination of at least 2 or 3.

Wind turbine blade roots use one of two bolted joint designs. The root insert style embeds a metallic bushing in the blade composite with internal threads for the bolt stud — allowing higher bolt counts and smaller root diameters at lower cost. The T-bolt style uses a barrel nut seated in the composite, with the bolt threading into the barrel nut to clamp the blade to the bearing.

Figure 1

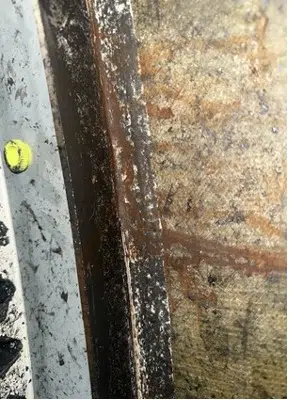

Figure 1: Rust debris originating from interface between blade root and pitch bearing
Figure 2
Figure 2: A cross-section cut of a failed root insert of a wind turbine blade

I've detected a potential failure, what next?

1. Get to know the failure

The first step to planning a course of action is to familiarize yourself with the issue.

Our deep-dive webinar ‘The Impact of Blade Root Failure and How to Monitor Them’ will provide you with key in-depth insights into tried and tested monitoring solutions available for these failures.

Watch the webinar

2. Contain the problem

The next course of action should be to contain the problem.

Inspections and measurements to determine which units have the issue is a critical component of the containment action. The tell-tale signs of this issue however mean some technologies are ineffective at finding this issue (namely external drone blade inspections or external visual inspections). These damages exist internal to the blade and are not visible.

3. Explore Available Technologies

SCADA Analysis

SCADA analysis focused on searching for this failure mode is unlikely to capture the damage when it is still small. By the time statistical summarizations of turbine operation data are analysed and a change is identified, it is likely already large enough that collapse is imminent.

Visual Inspections

Periodic visual inspections are used for blade gap detection but carry significant limitations:

  • Very labour-intensive — up to 12 site visits per year in some cases
  • Increased health and safety risk from repeated turbine climbs
  • Inconsistent data that is difficult to compare and report with confidence
  • Does not de-risk rapidly occurring catastrophic failures

Portable Health Sweep

Using a portable health sweep, a snapshot of your blade root connections’ health can be taken using a portable condition monitoring system. Whilst this still includes the additional costs of needing an engineer to climb the turbine each time an inspection is needed, it has the additional benefit of providing clear, comprehensive, and trustworthy data on the health of your asset.

ecoPITCH Portable can assess up to two turbines per team per day, requires no IT integration, and measurements have been verified against OEM-recommended procedures for measuring blade gaps. A full turnkey service option is available.

Permanent Monitoring System

A permanent blade root connection monitoring system offers in-depth, continuous monitoring of your asset. Using finely placed sensors within the turbine, condition monitoring hardware can transmit round-the-clock insights and data analytics, reducing the need for engineers to climb turbines.

Having access to on-demand data means failures can be predicted and detected long before catastrophic failure occurs, and as a result, reduces downtime and allows maintenance to be planned in advance.

ecoPITCH continuous monitoring is built on OEM-verified technology and can provide up to 12 months of advance warning before failure. By trending failure progression, it enables a wider variety of management options and significantly reduces the need for site visits.

Case Study

Operator restarts wind farm following blade loss

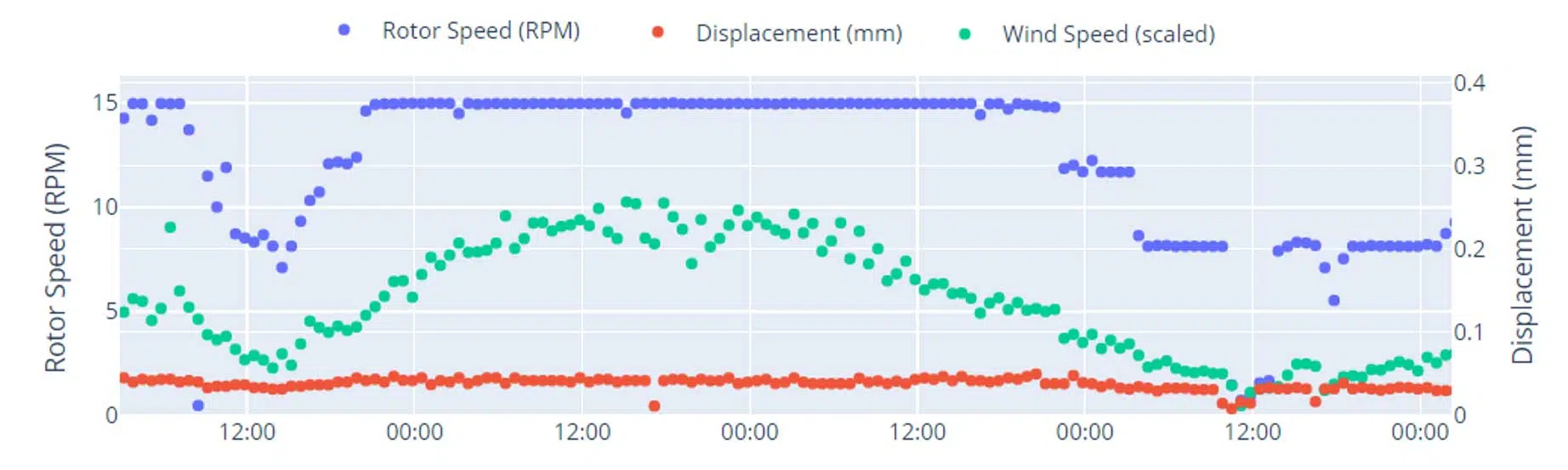

Blade gap data

Challenge

A US-based owner-operator faced the urgent challenge of bringing an entire onshore wind farm back online after it was taken offline due to a blade gap issue. The goal was to find a rapid yet reliable solution to verify turbine integrity and regain stakeholder confidence.

Solution

An ecoPITCH Portable measurement sweep was swiftly implemented, with ONYX engineers on site to evaluate blade gap health across the entire wind farm. A selection of turbines subsequently received a permanent ecoPITCH installation.

Outcome

  • Two turbines assessed per team per day; ONYX team on site within days of engagement
  • Comprehensive blade gap data enabled a swift return to operational status
  • Long-term risk de-risked through ecoPITCH continuous monitoring on selected turbines
  • Maintenance scheduled for the long term, minimising unplanned downtime and cost

Introducing Blade Root Connection Monitoring

Introducing the world’s 1st dedicated blade root connection monitoring system. Say goodbye to a dependence on costly, ineffective visual inspections.  Embrace a proactive approach through data-driven monitoring that identifies and addresses faults before they compromise performance.

Conclusion

Identifying the root cause of these failures is an important step in improving blade reliability. We are a part of a growing industry that is no stranger to the growing pains. To solve these issues, we must work together to improve products having employed similar monitoring technologies to other wind turbine components in the past (drivetrain CMS).

In my opinion as a former blade designer, this new blade root insert technology offers so many benefits from a wholistic design perspective that it is here to stay.

Inspections, measurements, and monitoring are also now critical components for long-term performance of wind turbine assets. As part of this community, I look forward to offering my help and expertise: lets work together to get your turbines back to doing their job.

Frequently Asked Questions

Why has the root insert architecture become more popular for modern wind turbine blade designs? What are some of its advantages over other architectures?

The root insert architecture allows for a higher bolt count and smaller root diameters on blades, leading to lower overall system costs.

What are the two main types of bolted joint architectures used to connect wind turbine blades to the pitch bearing? What are the differences between them?

The two main types of bolted joint architectures are the root insert style and the T-bolt style.  The root insert style has an imbedded metallic bushing in the blade composite with internal threads to engage the bolt.  The T-bolt style has a barrel nut with internal thread and is seated in the composite.  The bolt threads into the barrel nut to clamp the blade to the bearing.

What can happen if a wind turbine blade detaches suddenly due to a root insert failure? Why does this pose such a risk?

If a blade detaches, the imbalance forces can cause the tower to bend and potentially buckle, leading to collapse of the entire turbine. This poses a major risk due to the enormous forces involved.

What evidence from root cause analyses points to some of the potential causes of blade root insert failures?

Evidence includes progressive damage worsening over time, damage concentrated near the leading/trailing edges, rust and debris at the interface, loose insert bushings, and cracks in the laminate near the bushing termination.

Why might fatigue loading play a central role in many blade root insert failures?

Since damage is progressive and concentrated at the leading/trailing edges, fatigue from cyclic loads is likely a central cause of failure.

How might poor bonding or contamination during manufacturing contribute to blade root insert failures?

Poor bonding or a contaminated bonding surface could reduce adhesion strength at the resin-metal interface, contributing to failure.

What tell-tale signs mean some inspection methods like drones or visual inspections are ineffective at identifying blade root insert failures?

The damage occurs internally within the blade and is not visible externally, meaning visual methods are ineffective.

Why are SCADA analyses unlikely to detect blade root insert failures early enough to prevent collapse?

SCADA data is analyzed statistically, so only larger changes are observable which poses a higher risk of imminent failure.
